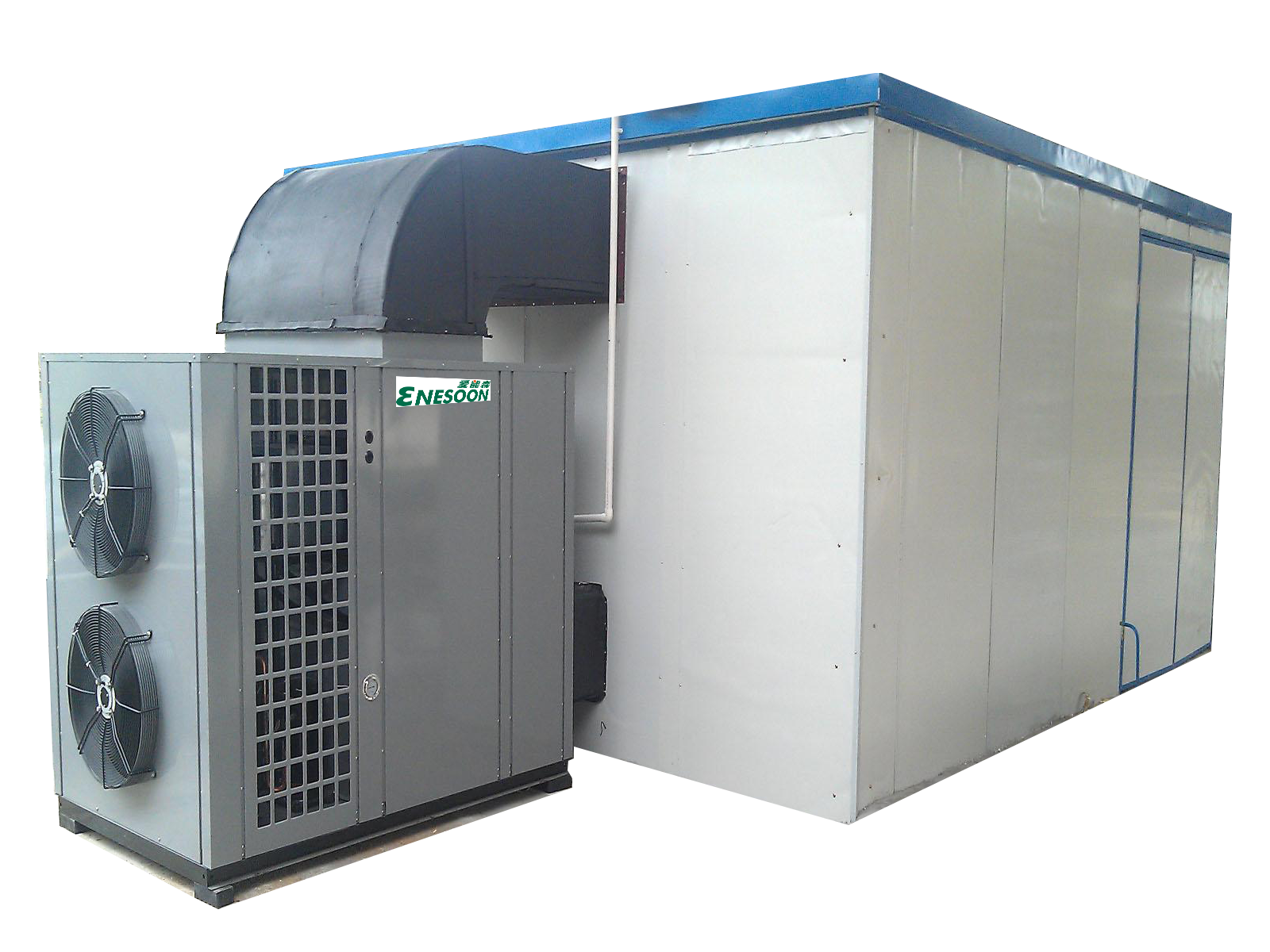

Product features:
1. High efficiency and energy saving: the unit adopts world’s famous brand compressor for heat pump, uses environmentally friendly refrigerant and high efficiency heat exchanger, works in accordance with heat pump control technology. With the help of a special proprietary high temperature heating system, which is more stable than usual, the unit provide high thermal efficiency in high temperature drying(80-85℃) process, meanwhile, energy is significantly conserved, and the cost of producing thermal is much lower than electric heating, gas and fuel.
2. Green and environmentally friendly: high-temperature hot water can be used as a heat medium, and the required baking materials are baked by the heat pump drying equipment. The unit eliminates the pollution of waste gas and waste residue generated by combustion.
| Model | ENE-13KDH | ENE-26KDH | ENE-26KCH | ENE-32KCH | ENE-60KCH | |
| Application environment range | ℃ | -7-43 | ||||
| Power | / | 380V/3N/50Hz | ||||
| Nominal heating capacity | KW | 13.8 | 26.8 | 26 | 32 | 60 |
| Nominal heating input power | KW | 4.29 | 9.00 | 8.67 | 10.67 | 20 |
| Input current | A | - | - | 25 | 30 | 60 |
| Max.operating current | A | - | - | 32.5 | 39 | 78 |
| Refrigerant type | / | R134a | ||||
| Protection level | / | IPX4 | ||||
| Safety device | / | High and low voltage protection, over current protection, temperature protection, power phase sequence protection | ||||
| Weight | kg | 115 | 230 | 230 | 300 | 600 |
| Dimensions | mm | 750*690*1050 | 1500*690*1070 | 1720×1060×1100 | 2100×1100×2000 | |
| Internal machine air volume | m³ | 15 | 30 | 30 | 38 | 76 |
